THETODD.DESIGN

DIY AUTOMATED DOOR PROJECT

Build Your Own
Sci-Fi Sliding Door

My scifi door build using closet-door hardware, an Arduino Nano, a NEMA 23 stepper motor, sensors, sound effects, and custom 3D-printed parts.

Watch the demo See the parts list

01

PROJECT WALKTHROUGH

Demo

02

REFERENCE DRAWINGS

Wiring & Door Mechanism

Select either diagram to open the full-size image. In the enlarged view, you can right-click the image and save it.

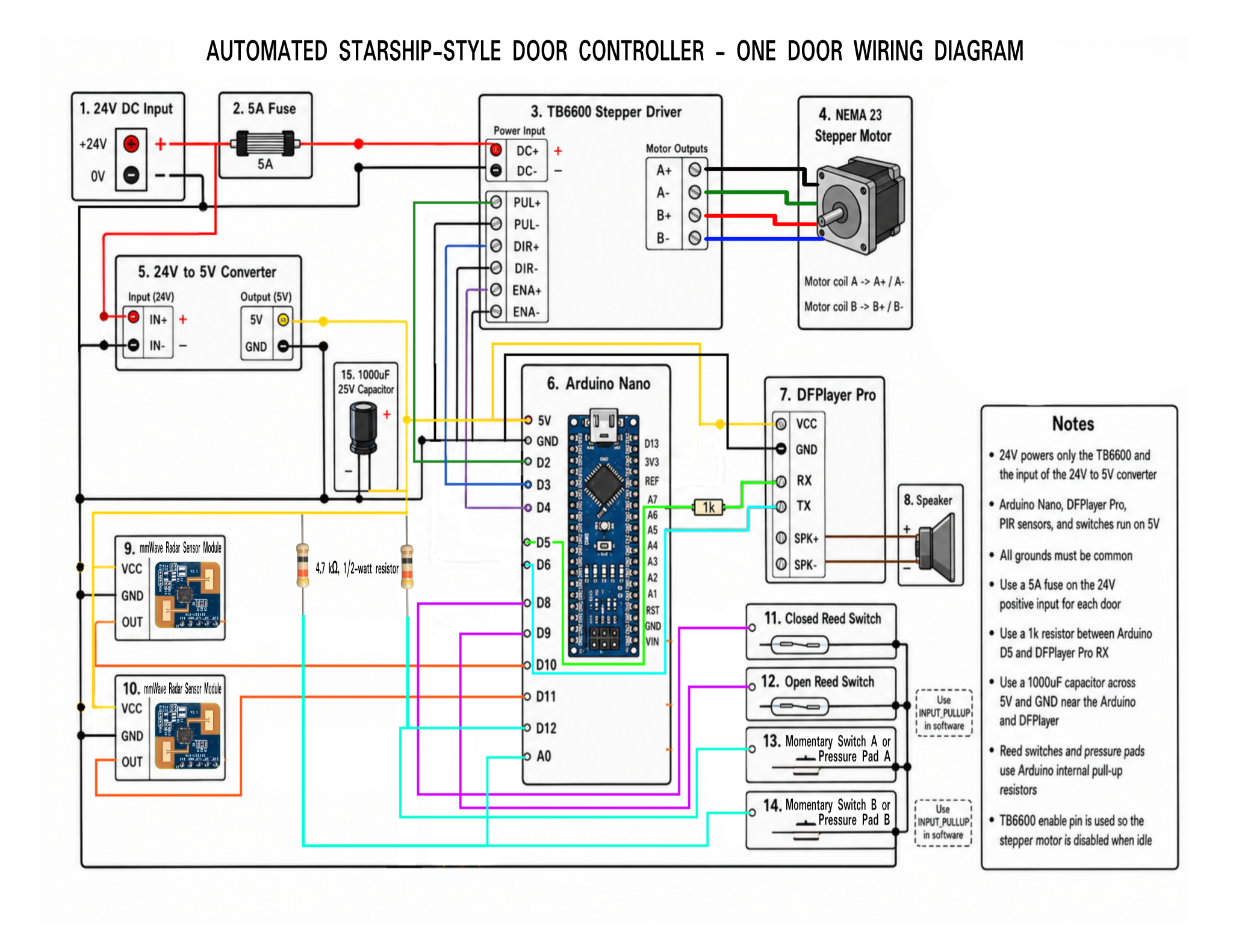

Door Controller Wiring24V supply, TB6600, Arduino Nano, sensors, switches, audio, and 5V power.

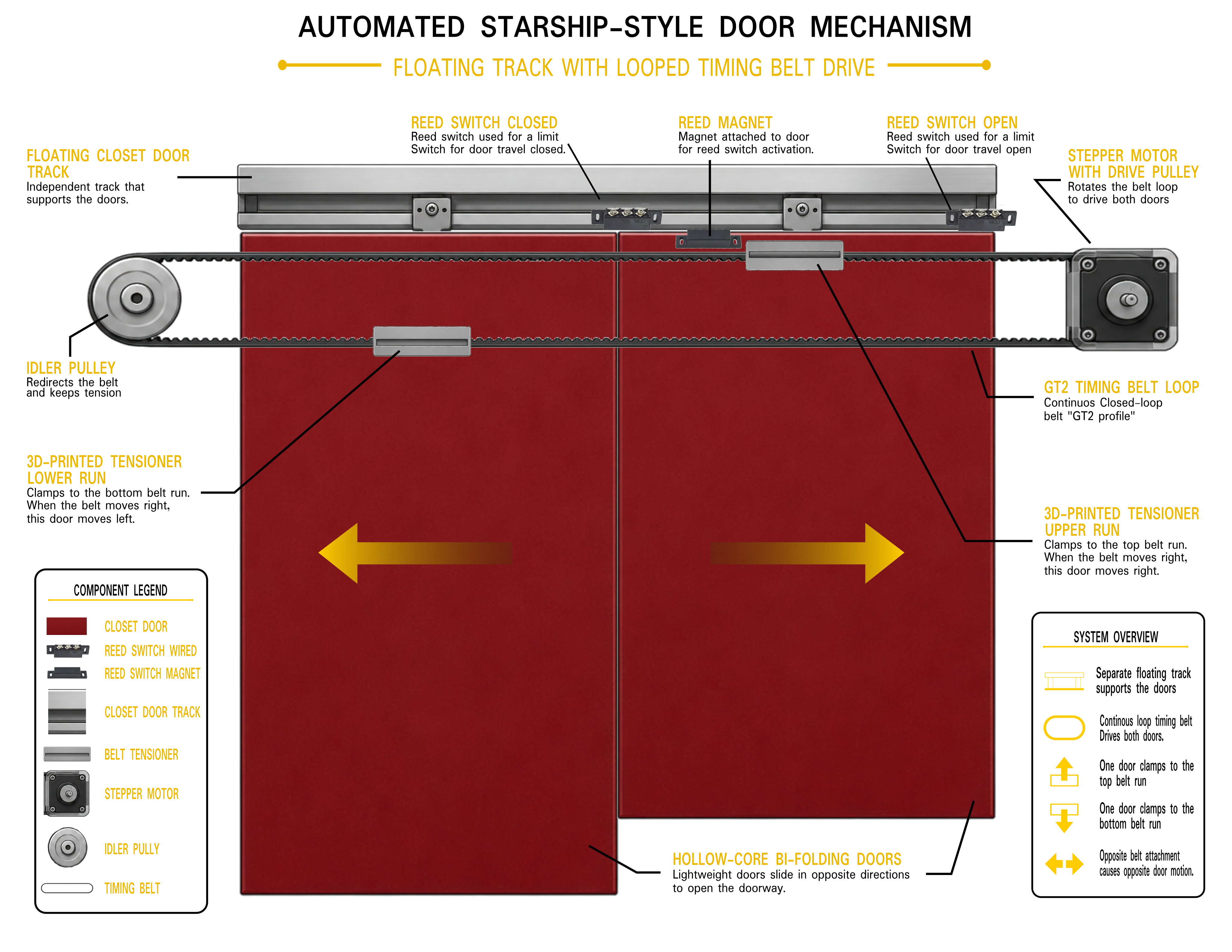

Sliding Door MechanismFloating track, paired door panels, looped timing belt, motor, pulley, and mounting layout.

03

REFERENCE PICTURES

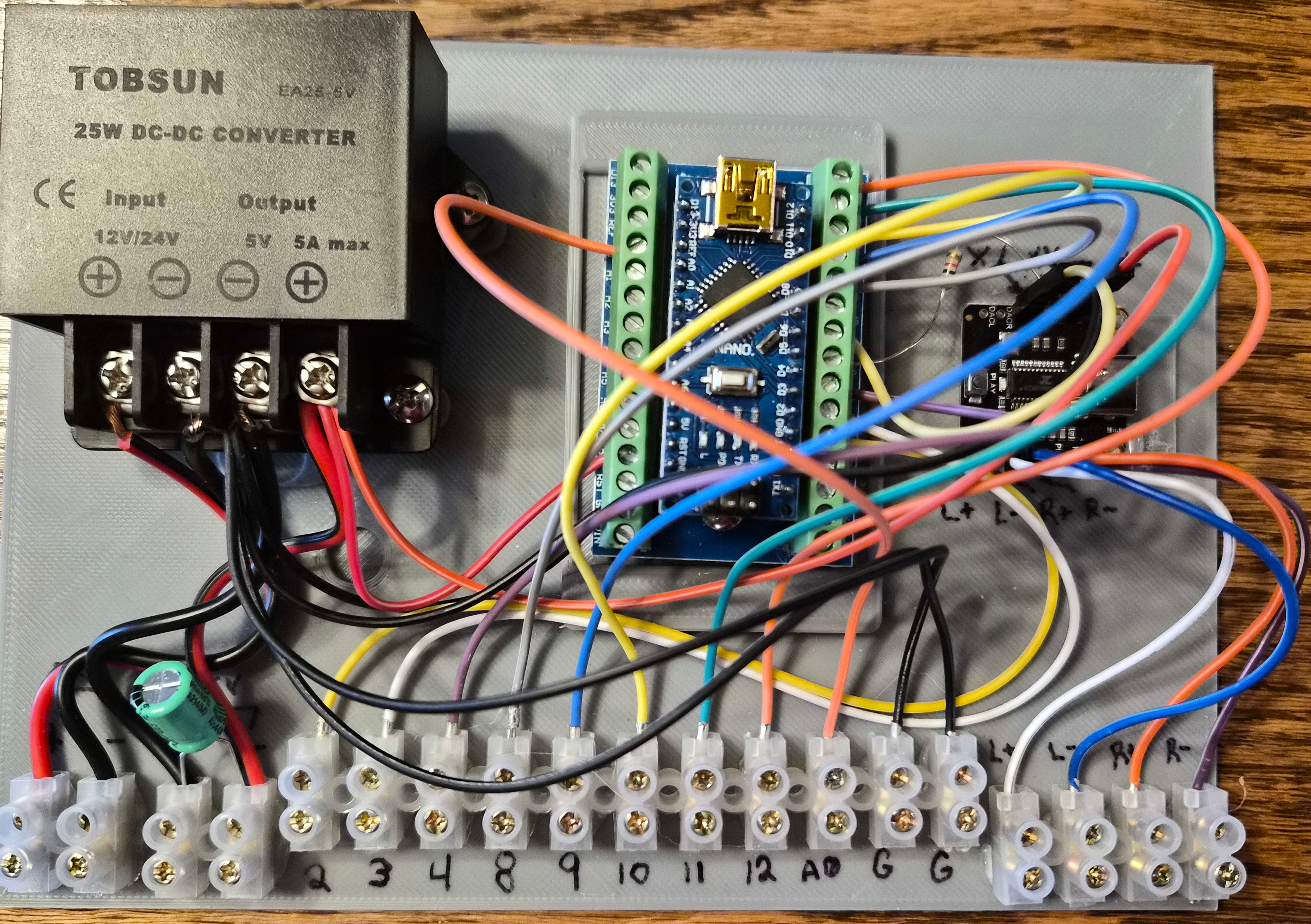

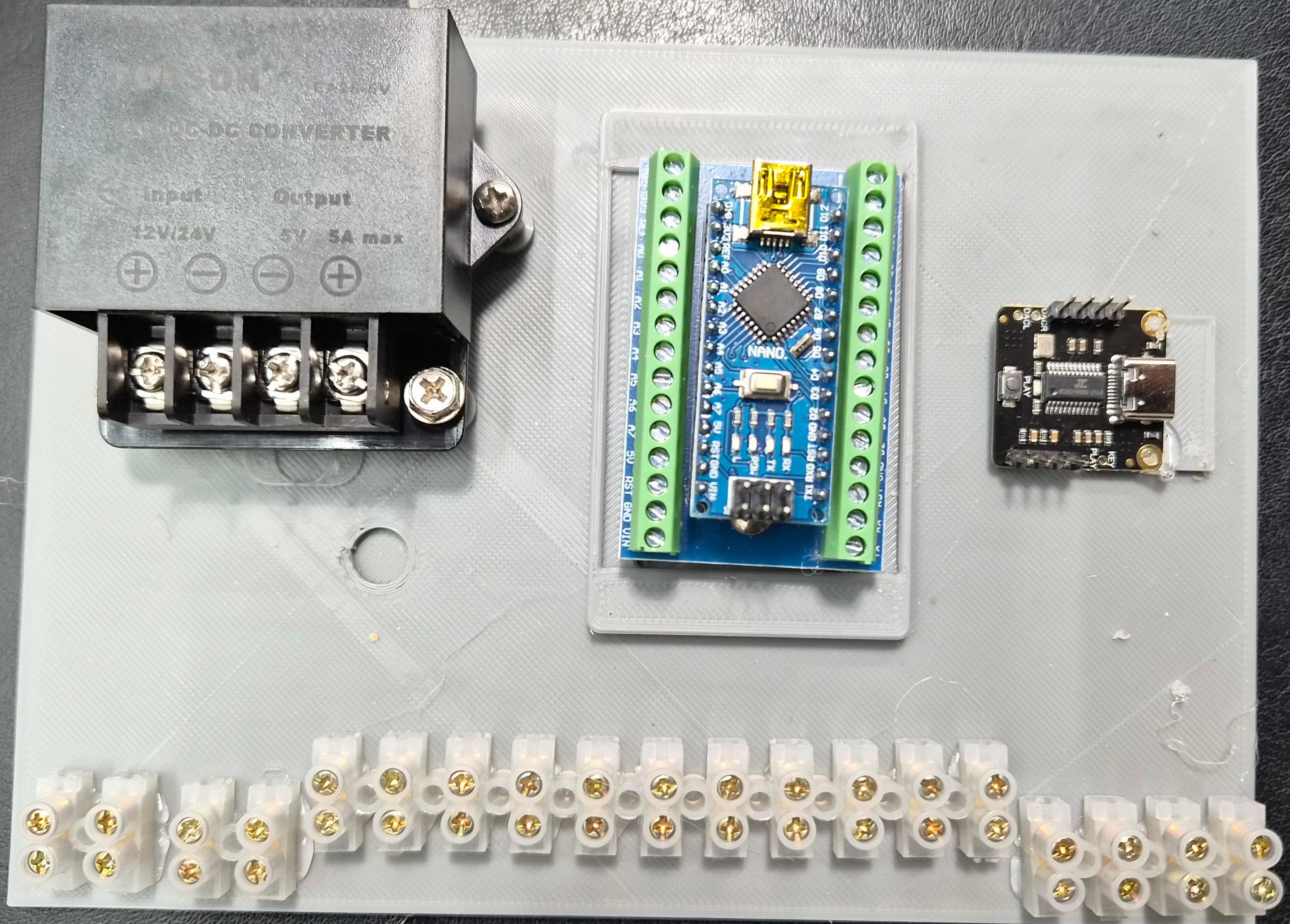

Controller Board Layout

Select either picture to open the full-size image. In the enlarged view, you can right-click the image and save it.

04

SHOPPING LIST

Parts & Estimated Cost

Prices are the listed purchase prices and may change. Several products are multi-packs and can supply more than one door.

LIST TOTAL$306.30before tax and shipping
PartPricePurchase link
Bifolding Closet Doors 36" $99.68 View part
Floating Closet Door Track 72" $17.78 View part
1/2" Offset Back Rollers ( 2 Pack ) $3.37 View part
2Pcs Nano V3.0 Board ATmega328P/CH340G $11.99 View part
3pcs Nano V3.0 Controller Terminal Adapter Expansion Board $6.59 View part
Power Converter Regulator DC 12V 24V to 5V 5A 25W ( 2 Pack ) $13.86 View part
Magnetic Reed Switch Black ( 5 pack) $9.70 View part
Stepper Motor Nema 23 Bipolar 2.8A $29.98 View part
EASON TB6600 Stepper Motor Driver 4A DC9-42V $11.89 View part
4pcs GT-2 30T Pulley Synchronous Wheel 6.35mm Bore $8.99 View part
3D Print GT2 Open Timing Belt 10 Meters (32.8 Ft) Length $9.99 View part
DC 24V 15A 360W Power Supply Universal Regulated Switching Transformer $17.99 View part
2Pcs 5W 8 Ohm Speaker Double Cavity 5 Watt Mini Speaker $6.99 View part
DFPlayer Pro MP3 Player Module $8.90 View part
1000uF 10V 8x12mm Electrolytic Capacitor (Pack of 15) $5.99 View part
5 Pcs Silvery Momentary Push Button Switch $5.99 View part
4.7K Ohm Carbon Film Single Fixed Resistor 1/2 W ( 10 Pack ) $3.99 View part
Female to Female Multicolored Dupont Wire $3.99 View part
Amazon Basics 16-Gauge Speaker Wire Cable, Polarity Marked, 100 ft $10.76 View part
10 Pieces Terminal Strips Electrical Block Set 12-Position $7.99 View part
M5 x 30mm Hex Socket Head Cap Screws Bolts and Nuts (60 Sets) $9.89 View part

05

TROUBLESHOOTING

Nano Status Light Codes

  1. 1 blinkopening timeout — open reed was never reached
  2. 2 blinksclosing timeout — closed reed was never reached
  3. 3 blinksfinal-close timeout
  4. 4 blinkshoming timeout
  5. 5 blinksboth reed switches active simultaneously
  6. 6 blinksopen reed stayed active after closing began
  7. 7 blinksclosed reed stayed active after opening began

06

PROGRAMMING SOFTWARE

Software Needed

The Arduino IDE is the only software needed to open, edit, and upload the sci-fi door controller code to the Arduino Nano.

IDE Arduino IDE Available for Windows, macOS, and Linux

07

FABRICATION FILES

3D-Print Downloads

The 3d files you will needed to make the doors work. Files are zipped for easy download.

STLBelt TensionerSuggest 100% infill for strength STLNema 23 MountNema Stepper Motor mount STLControler boardMount for 24V to 5V converter, Nano, Df Player, and terminal blocks STLSensor MountsDownload coming soon ZIPComplete Print SetDoes not include sensor mountsSuggest 100% infill for belt tensioner

08

CONTROLLER SOFTWARE

Arduino Nano Code

Download the controller code used for this sci-fi sliding door project. The code is provided for personal, noncommercial use. You must review and accept the agreement before the download begins.

09

DOOR AUDIO

Sci-Fi Door Sounds

Download sound files for the DFPlayer Pro. Extract the ZIP file and copy the selected MP3 file to the root directory of the DFPlayer Pro storage.

AUDIO Classic Sci-Fi Door Sound Includes the MP3 file used by the Nano controller

The default Nano code expects the door sound file to be named 0001.mp3.
